Collaborative Filtering - Latent Factor Matrix (Part 1)

Creating Latent Factors Matrix using set of Users, Items and Ratings
machinelearning
Author

Tony Phung

Published

May 7, 2024

1. Introduction

One very common problem to solve is when you have:

  • a number of users and
  • a number of products, and you want to
  • recommend which products are most likely to be useful for which users.

There are many variations of this:

  • recommending movies (such as on Netflix),
  • figuring out what to highlight for a user on a home page,
  • deciding what stories to show in a social media feed, and so forth.

There is a general solution to this problem, called collaborative filtering:

  • look at what products the current user has used or liked,
  • find other users that have used or liked similar products, and then
  • recommend other products that those users have used or liked.

2. Import Data

  • user ratings data for movies watched (only has movie IDs)
  • movies data (to get the movie names)
# 1. import libraries
from fastai.data.external import untar_data  # unzip the files
from fastai.data.external import URLs # urls, usually zip files
import os
import pandas as pd, numpy as np
import torch
from fastai.torch_core import one_hot
path = untar_data(URLs.ML_100k)  # path = Path('/home/tonydevs/.fastai/data/ml-100k')

2.1 Available files

path = untar_data(URLs.ML_100k)
os.listdir(path)
['ub.base',
 'u.data',
 'u4.test',
 'u3.test',
 'ua.test',
 'ub.test',
 'u2.base',
 'u1.test',
 'u.info',
 'README',
 'mku.sh',
 'u.genre',
 'u3.base',
 'u4.base',
 'u.item',
 'u.occupation',
 'u5.base',
 'ua.base',
 'allbut.pl',
 'u5.test',
 'u2.test',
 'u1.base',
 'u.user']

2.2 Checking out the README

def get_info(folder_name):
    info_path = os.path.join(path,folder_name)
    with open(info_path) as f:
        info_content = f.read()
    print(info_content)

# get_info('README')

2.2.1 README - u.data

  • The full u data set, 100000 ratings by 943 users on 1682 items etc…
  • This is a tab separated list of user id | item id | rating | timestamp.

2.2.2 README - u.item

  • Information about the items (movies);
  • This is a tab separated list of movie id | movie title | release date | video release date | etc…

2.3 Movies data

2.3.1 Codec/Encoding import problem

There is a code problem with importing the movies dataset.

movies_df = pd.read_csv(path/'u.item')
---------------------------------------------------------------------------
UnicodeDecodeError                        Traceback (most recent call last)
Cell In[13], line 1
----> 1 movies_df = pd.read_csv(path/'u.item')

File ~/miniforge3/envs/fast/lib/python3.12/site-packages/pandas/io/parsers/readers.py:1026, in read_csv(filepath_or_buffer, sep, delimiter, header, names, index_col, usecols, dtype, engine, converters, true_values, false_values, skipinitialspace, skiprows, skipfooter, nrows, na_values, keep_default_na, na_filter, verbose, skip_blank_lines, parse_dates, infer_datetime_format, keep_date_col, date_parser, date_format, dayfirst, cache_dates, iterator, chunksize, compression, thousands, decimal, lineterminator, quotechar, quoting, doublequote, escapechar, comment, encoding, encoding_errors, dialect, on_bad_lines, delim_whitespace, low_memory, memory_map, float_precision, storage_options, dtype_backend)
   1013 kwds_defaults = _refine_defaults_read(
   1014     dialect,
   1015     delimiter,
   (...)
   1022     dtype_backend=dtype_backend,
   1023 )
   1024 kwds.update(kwds_defaults)
-> 1026 return _read(filepath_or_buffer, kwds)

File ~/miniforge3/envs/fast/lib/python3.12/site-packages/pandas/io/parsers/readers.py:620, in _read(filepath_or_buffer, kwds)
    617 _validate_names(kwds.get("names", None))
    619 # Create the parser.
--> 620 parser = TextFileReader(filepath_or_buffer, **kwds)
    622 if chunksize or iterator:
    623     return parser

File ~/miniforge3/envs/fast/lib/python3.12/site-packages/pandas/io/parsers/readers.py:1620, in TextFileReader.__init__(self, f, engine, **kwds)
   1617     self.options["has_index_names"] = kwds["has_index_names"]
   1619 self.handles: IOHandles | None = None
-> 1620 self._engine = self._make_engine(f, self.engine)

File ~/miniforge3/envs/fast/lib/python3.12/site-packages/pandas/io/parsers/readers.py:1898, in TextFileReader._make_engine(self, f, engine)
   1895     raise ValueError(msg)
   1897 try:
-> 1898     return mapping[engine](f, **self.options)
   1899 except Exception:
   1900     if self.handles is not None:

File ~/miniforge3/envs/fast/lib/python3.12/site-packages/pandas/io/parsers/c_parser_wrapper.py:93, in CParserWrapper.__init__(self, src, **kwds)
     90 if kwds["dtype_backend"] == "pyarrow":
     91     # Fail here loudly instead of in cython after reading
     92     import_optional_dependency("pyarrow")
---> 93 self._reader = parsers.TextReader(src, **kwds)
     95 self.unnamed_cols = self._reader.unnamed_cols
     97 # error: Cannot determine type of 'names'

File parsers.pyx:574, in pandas._libs.parsers.TextReader.__cinit__()

File parsers.pyx:663, in pandas._libs.parsers.TextReader._get_header()

File parsers.pyx:874, in pandas._libs.parsers.TextReader._tokenize_rows()

File parsers.pyx:891, in pandas._libs.parsers.TextReader._check_tokenize_status()

File parsers.pyx:2053, in pandas._libs.parsers.raise_parser_error()

File <frozen codecs>:322, in decode(self, input, final)

UnicodeDecodeError: 'utf-8' codec can't decode byte 0xe9 in position 76620: invalid continuation byte

2.3.2 chardet library

Lets use chardet library to decode encoding automatically.
We find that data is in ‘ISO-8859-1’ encoding.

import chardet

read_mode   = 'rb' #'rb' means "open the file in read mode, and read it as a binary file".
movie_path  = path/'u.item'

with open(movie_path, read_mode) as f: #'rb' means "open the file in read mode, and read it as a binary file".
    result = chardet.detect(f.read())
encoding_id = result['encoding']
encoding_id
'ISO-8859-1'

2.3.3 Updating Codec (error persists)

movies_df = pd.read_csv(path/'u.item', encoding=encoding_id)
---------------------------------------------------------------------------
ParserError                               Traceback (most recent call last)
Cell In[17], line 1
----> 1 movies_df = pd.read_csv(path/'u.item', encoding=encoding_id)

File ~/miniforge3/envs/fast/lib/python3.12/site-packages/pandas/io/parsers/readers.py:1026, in read_csv(filepath_or_buffer, sep, delimiter, header, names, index_col, usecols, dtype, engine, converters, true_values, false_values, skipinitialspace, skiprows, skipfooter, nrows, na_values, keep_default_na, na_filter, verbose, skip_blank_lines, parse_dates, infer_datetime_format, keep_date_col, date_parser, date_format, dayfirst, cache_dates, iterator, chunksize, compression, thousands, decimal, lineterminator, quotechar, quoting, doublequote, escapechar, comment, encoding, encoding_errors, dialect, on_bad_lines, delim_whitespace, low_memory, memory_map, float_precision, storage_options, dtype_backend)
   1013 kwds_defaults = _refine_defaults_read(
   1014     dialect,
   1015     delimiter,
   (...)
   1022     dtype_backend=dtype_backend,
   1023 )
   1024 kwds.update(kwds_defaults)
-> 1026 return _read(filepath_or_buffer, kwds)

File ~/miniforge3/envs/fast/lib/python3.12/site-packages/pandas/io/parsers/readers.py:626, in _read(filepath_or_buffer, kwds)
    623     return parser
    625 with parser:
--> 626     return parser.read(nrows)

File ~/miniforge3/envs/fast/lib/python3.12/site-packages/pandas/io/parsers/readers.py:1923, in TextFileReader.read(self, nrows)
   1916 nrows = validate_integer("nrows", nrows)
   1917 try:
   1918     # error: "ParserBase" has no attribute "read"
   1919     (
   1920         index,
   1921         columns,
   1922         col_dict,
-> 1923     ) = self._engine.read(  # type: ignore[attr-defined]
   1924         nrows
   1925     )
   1926 except Exception:
   1927     self.close()

File ~/miniforge3/envs/fast/lib/python3.12/site-packages/pandas/io/parsers/c_parser_wrapper.py:234, in CParserWrapper.read(self, nrows)
    232 try:
    233     if self.low_memory:
--> 234         chunks = self._reader.read_low_memory(nrows)
    235         # destructive to chunks
    236         data = _concatenate_chunks(chunks)

File parsers.pyx:838, in pandas._libs.parsers.TextReader.read_low_memory()

File parsers.pyx:905, in pandas._libs.parsers.TextReader._read_rows()

File parsers.pyx:874, in pandas._libs.parsers.TextReader._tokenize_rows()

File parsers.pyx:891, in pandas._libs.parsers.TextReader._check_tokenize_status()

File parsers.pyx:2061, in pandas._libs.parsers.raise_parser_error()

ParserError: Error tokenizing data. C error: Expected 1 fields in line 12, saw 3

2.3.4 Update Delimiter

By adding the delimiter we’ve resolved the issue.

movies_df = pd.read_csv(path/'u.item', encoding=encoding_id, delimiter='|')
movies_df[0:3]
1 Toy Story (1995) 01-Jan-1995 Unnamed: 3 http://us.imdb.com/M/title-exact?Toy%20Story%20(1995) 0 0.1 0.2 1.1 1.2 ... 0.6 0.7 0.8 0.9 0.10 0.11 0.12 0.13 0.14 0.15
0 2 GoldenEye (1995) 01-Jan-1995 NaN http://us.imdb.com/M/title-exact?GoldenEye%20(1995) 0 1 1 0 0 ... 0 0 0 0 0 0 0 1 0 0
1 3 Four Rooms (1995) 01-Jan-1995 NaN http://us.imdb.com/M/title-exact?Four%20Rooms%20(1995) 0 0 0 0 0 ... 0 0 0 0 0 0 0 1 0 0
2 4 Get Shorty (1995) 01-Jan-1995 NaN http://us.imdb.com/M/title-exact?Get%20Shorty%20(1995) 0 1 0 0 0 ... 0 0 0 0 0 0 0 0 0 0

3 rows × 24 columns

2.4 Import Movies and Ratings and Merging

2.4.1 Movies

movies_df = pd.read_csv(path/'u.item', delimiter='|', encoding=encoding_id, header=None, usecols=(0,1),
            names =['movie_id','movie_title'])
movies_df[0:5]
movie_id movie_title
0 1 Toy Story (1995)
1 2 GoldenEye (1995)
2 3 Four Rooms (1995)
3 4 Get Shorty (1995)
4 5 Copycat (1995)

2.4.2 User Ratings

usr_ratings_df = pd.read_csv(path/'u.data',delimiter='\t', header=None,
                       names=['user_id','movie_id','rating','timestamp'])
usr_ratings_df[0:5]
user_id movie_id rating timestamp
0 196 242 3 881250949
1 186 302 3 891717742
2 22 377 1 878887116
3 244 51 2 880606923
4 166 346 1 886397596

2.4.3 Merged

ratings_merged = usr_ratings_df.merge(movies_df)
ratings_merged[0:5]
user_id movie_id rating timestamp movie_title
0 196 242 3 881250949 Kolya (1996)
1 186 302 3 891717742 L.A. Confidential (1997)
2 22 377 1 878887116 Heavyweights (1994)
3 244 51 2 880606923 Legends of the Fall (1994)
4 166 346 1 886397596 Jackie Brown (1997)

3. Dataloaders

The imported module used here is CollabDataLoaders.from_df().

Input: is a Pandas Dataframe with columns:

  • user ids
  • movie titles
  • ratings
from fastai.collab import CollabDataLoaders
dls = CollabDataLoaders.from_df(ratings_merged,
    user_name='user_id',
    item_name='movie_title',
    rating_name='rating',
    bs=64) # batch_sizes)
dls.show_batch()
user_id movie_title rating
0 726 Bulletproof (1996) 5
1 425 Daylight (1996) 1
2 721 Jackie Chan's First Strike (1996) 5
3 912 Chasing Amy (1997) 2
4 668 Mighty Aphrodite (1995) 4
5 738 Chain Reaction (1996) 3
6 537 Cook the Thief His Wife & Her Lover, The (1989) 3
7 704 Fantasia (1940) 5
8 290 Die Hard (1988) 3
9 385 Raising Arizona (1987) 5

4. Latent Factors Matrix

To calculate the result for a particular movie and user combination:

  • get index of the movie in our movie latent factor matrix and
  • get the index of the user in our user latent factor matrix
  • dot product between the two latent factor vectors.

But look up in an index is not an operation our deep learning models know how to do. They know how to do matrix products, and activation functions.

Fortunately, it turns out that we can represent look up in an index as a matrix product. The trick is to replace our indices with one-hot-encoded vectors.

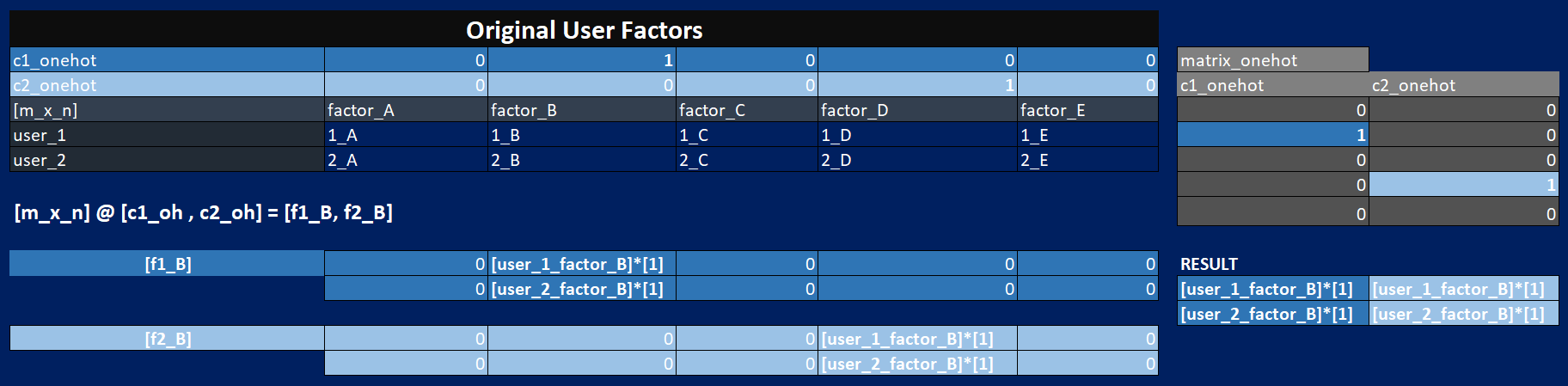

4.1 Excel Matrix-Multiply-1: All Users by 1-Latent-Factor

Note: When matrix-multipying:

  • user_factors matrix [user (m) by factors (n)] by
  • one_hot encoded matrix [each column is one_hot_encoded vector of required index]

The result is a matrix where each column is the chosen factor index, i.e:

  • each column of the resultant matrix: [every user m by the single factor]: [m,1]

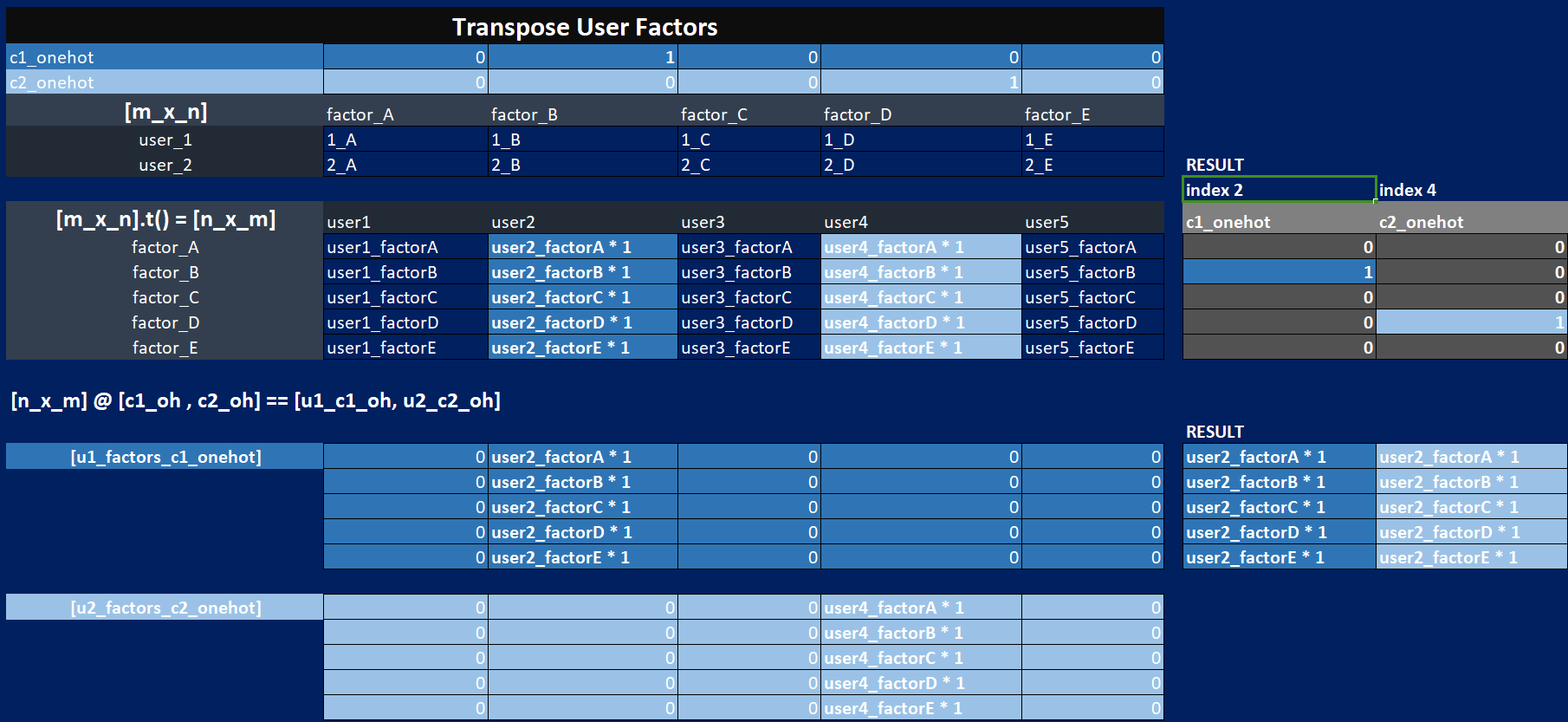

4.2 Excel Matrix-Multiply-2: Individual Users by All-Latent-Factors

However, what we want is the transpose of this result, i.e:

  • each column representing [1 user and all its factors]

4.3 One-Hot-Encoded Vector

Convert our index of our latent factor matrix into one-hot-encoded vectors using:

  • from fastai.torch_core import one_hot

4.3.1 Steps

  1. Convert some all indices of our matrix (944) to one-hot-encoded vectors (i.e. 944 individual vectors).
    For e.g. Index [3] becomes a 1D-vector of length (n_users) or torch.Size([944])
  2. Matrix-Multiplying two single vectors is equivalent to the dot-product
n_users_integer = len(dls.classes['user_id']) # get number of users ids
n_movies_integer = len(dls.classes['movie_title']) # get number of users ids
n_latent_factors_integer = 5
one_hot_2 = one_hot(2, n_users_integer).float()
users_latent_factors = torch.rand(n_users_integer, n_latent_factors_integer) # 944,5
movie_latent_factors = torch.rand(n_movies_integer, n_latent_factors_integer) # 1665,5

4.3.2 Index[2] of User-Latent-Factors

users_latent_factors[2]
tensor([0.1049, 0.5802, 0.1599, 0.2081, 0.5760])
users_latent_factors.shape # [m,n] - [944,5]
usr_t = users_latent_factors.t()
usr_t.shape #[5,944]
one_hot_2.shape #[944]
torch.Size([944])

4.3.3 Matrix-Multiply [User-Latent-Factors@One_Hot_IDX2]

Equivalent to Index 2 of Original User-Latent-Factors

usr_t@one_hot_2 # [5,944]@[944] ~ [m_x_n]@[n] =
one_hot_user_factors_1d_tsr = users_latent_factors.t() @ one_hot_2 #[n_x_m]
one_hot_user_factors_1d_tsr
tensor([0.1049, 0.5802, 0.1599, 0.2081, 0.5760])

5. To Be Continued…

Please see link for the next post related to Collaborative Filtering
