How to Build and Deploy a Deep-Learning Multi-Classifier Web App (Part 2)

This post shows how to create a Gradio App (app.py) and run it locally in a browser. This app should:

• Allow users to upload an image

• Make a Prediction of the breed of dog or cat
• Provide a Probability on the predictions of available breeds (dataset used only has 37 different breeds)

This post is part of a series:
Part 1: Create Learner (.pkl file)
Part 2: Create Gradio application file (app.py)
Part 3: Upload to HuggingFace account

Part 2: Create Gradio application file (app.py)

1. Import Gradio and Fast AI libraries

from fastai.vision.all import *
import gradio as gr

c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\torchvision\io\image.py:13: UserWarning: Failed to load image Python extension: '[WinError 127] The specified procedure could not be found'If you don't plan on using image functionality from `torchvision.io`, you can ignore this warning. Otherwise, there might be something wrong with your environment. Did you have `libjpeg` or `libpng` installed before building `torchvision` from source?
  warn(

2. Import Learner (.pkl file)

Recall, this file was created and exported in Part 1

• If you’re running on a Linux, you shouldn’t have any import issues.

• If you’re running a Windows PC, you’ll likely to experience an error.

pets_learner = load_learner('pets_learner.pkl')

---------------------------------------------------------------------------
NotImplementedError                       Traceback (most recent call last)
Cell In[4], line 1
----> 1 pets_learner = load_learner('pets_learner.pkl')

File c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\fastai\learner.py:446, in load_learner(fname, cpu, pickle_module)
    444 distrib_barrier()
    445 map_loc = 'cpu' if cpu else default_device()
--> 446 try: res = torch.load(fname, map_location=map_loc, pickle_module=pickle_module)
    447 except AttributeError as e:
    448     e.args = [f"Custom classes or functions exported with your `Learner` not available in namespace.\Re-declare/import before loading:\n\t{e.args[0]}"]

File c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\torch\serialization.py:1014, in load(f, map_location, pickle_module, weights_only, mmap, **pickle_load_args)
   1012             except RuntimeError as e:
   1013                 raise pickle.UnpicklingError(UNSAFE_MESSAGE + str(e)) from None
-> 1014         return _load(opened_zipfile,
   1015                      map_location,
   1016                      pickle_module,
   1017                      overall_storage=overall_storage,
   1018                      **pickle_load_args)
   1019 if mmap:
   1020     raise RuntimeError("mmap can only be used with files saved with ",
   1021                        "`torch.save(_use_new_zipfile_serialization=True), "
   1022                        "please torch.save your checkpoint with this option in order to use mmap.")

File c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\torch\serialization.py:1422, in _load(zip_file, map_location, pickle_module, pickle_file, overall_storage, **pickle_load_args)
   1420 unpickler = UnpicklerWrapper(data_file, **pickle_load_args)
   1421 unpickler.persistent_load = persistent_load
-> 1422 result = unpickler.load()
   1424 torch._utils._validate_loaded_sparse_tensors()
   1425 torch._C._log_api_usage_metadata(
   1426     "torch.load.metadata", {"serialization_id": zip_file.serialization_id()}
   1427 )

File c:\Users\tonyp\miniconda3\envs\fastai\Lib\pathlib.py:873, in Path.__new__(cls, *args, **kwargs)
    871 self = cls._from_parts(args)
    872 if not self._flavour.is_supported:
--> 873     raise NotImplementedError("cannot instantiate %r on your system"
    874                               % (cls.__name__,))
    875 return self

NotImplementedError: cannot instantiate 'PosixPath' on your system

2.1 Import Learner Error (.pkl file) Solution (Windows only)

I found a solution here.
Not too sure why this happens, probably linux vs windows compatibility, forward vs backlashes probably?

Import the pathlib library below and run the code below to fix the paths:

Note:
- This fix is only required during the testing phase of our Gradio App.
- This testing phase is defined as being able to run the Gradio App locally.
- When we Upload to HuggingFace Spaces, this code fix is not required (because HF is run on Linux, hence no Posix issues, from my understanding)

# only run to import pkl in windows when youre doing testing in windows | when run in hus | its run via dock images ie linux ie no problems
import pathlib #
temp = pathlib.PosixPath
pathlib.PosixPath = pathlib.WindowsPath

pets_learner = load_learner('pets_learner.pkl')

3 Predict the Breed with Imported Learner

3.1 Import Local Image

pet1 = PILImage.create('pet1.jpg')
pet1.thumbnail((224,224))
pet1

3.2 Make prediction

Use predict() to make prediction on the uploaded local image. The results will have 3 items:
1. The prediction of the breed.
2. Index of the Tensor (in point 3.)
3. A Tensor of length 37. Why the odd number?
- These are the probabilities of each unique breeds in our data!
- Recall in Part 1, we determined the different categories by using a custom labelling function

res = pets_learner.predict(pet1)
res

c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\fastai\torch_core.py:263: UserWarning: 'has_mps' is deprecated, please use 'torch.backends.mps.is_built()'
  return getattr(torch, 'has_mps', False)

0.00% [0/1 00:00<?]

('Bombay',
 tensor(3),
 tensor([3.4475e-02, 1.7813e-03, 8.1388e-03, 6.3685e-01, 6.0993e-03, 4.8830e-04,
         5.0747e-02, 8.8036e-03, 2.1084e-01, 3.4832e-02, 9.6598e-04, 7.6646e-04,
         6.3764e-04, 2.5949e-04, 8.7999e-05, 1.3308e-03, 6.6650e-05, 5.7116e-05,
         9.0377e-04, 6.9052e-05, 2.0095e-04, 2.1758e-05, 2.5767e-04, 2.1859e-05,
         3.8547e-05, 1.6165e-06, 6.2601e-05, 4.3552e-05, 1.4901e-04, 9.6175e-05,
         1.0010e-04, 1.3717e-04, 2.7684e-04, 5.5386e-05, 5.7012e-05, 4.6809e-05,
         2.2643e-04]))

3.3 What is the probabilities representing?

The probabilities tensor from predict() are the unique categories in our data and are stored in our dataloader

categories = pets_learner.dls.vocab
categories

['Abyssinian', 'Bengal', 'Birman', 'Bombay', 'British_Shorthair', 'Egyptian_Mau', 'Maine_Coon', 'Persian', 'Ragdoll', 'Russian_Blue', 'Siamese', 'Sphynx', 'american_bulldog', 'american_pit_bull_terrier', 'basset_hound', 'beagle', 'boxer', 'chihuahua', 'english_cocker_spaniel', 'english_setter', 'german_shorthaired', 'great_pyrenees', 'havanese', 'japanese_chin', 'keeshond', 'leonberger', 'miniature_pinscher', 'newfoundland', 'pomeranian', 'pug', 'saint_bernard', 'samoyed', 'scottish_terrier', 'shiba_inu', 'staffordshire_bull_terrier', 'wheaten_terrier', 'yorkshire_terrier']

3.4 The prediction and probabilities of our image

# get index of predction
idx = res[1]

# store list of probalities of our predction
probabilities = res[2]

# get breed and probability of our prediction
categories[idx],probabilities[idx]

('Bombay', tensor(0.6369))

3.5 Probability of every category available

def classify_image_fn(img):
    prediction, idx, probabilities = pets_learner.predict(img)
    return dict(zip(categories, map(float, probabilities)))

classify_image_fn(pet1)     # names and probabilities

c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\fastai\torch_core.py:263: UserWarning: 'has_mps' is deprecated, please use 'torch.backends.mps.is_built()'
  return getattr(torch, 'has_mps', False)

{'Abyssinian': 0.034474823623895645,
 'Bengal': 0.0017812795704230666,
 'Birman': 0.008138809353113174,
 'Bombay': 0.6368528604507446,
 'British_Shorthair': 0.006099338177591562,
 'Egyptian_Mau': 0.0004883029614575207,
 'Maine_Coon': 0.05074741691350937,
 'Persian': 0.008803554810583591,
 'Ragdoll': 0.21084259450435638,
 'Russian_Blue': 0.03483246639370918,
 'Siamese': 0.0009659799397923052,
 'Sphynx': 0.0007664564182050526,
 'american_bulldog': 0.0006376394885592163,
 'american_pit_bull_terrier': 0.0002594943216536194,
 'basset_hound': 8.799932402325794e-05,
 'beagle': 0.0013307805638760328,
 'boxer': 6.664981629000977e-05,
 'chihuahua': 5.711586709367111e-05,
 'english_cocker_spaniel': 0.0009037724230438471,
 'english_setter': 6.905203190399334e-05,
 'german_shorthaired': 0.00020094779029022902,
 'great_pyrenees': 2.1758336515631527e-05,
 'havanese': 0.0002576670085545629,
 'japanese_chin': 2.1859435946680605e-05,
 'keeshond': 3.85471066692844e-05,
 'leonberger': 1.616517351976654e-06,
 'miniature_pinscher': 6.26009568804875e-05,
 'newfoundland': 4.355219061835669e-05,
 'pomeranian': 0.00014901049144100398,
 'pug': 9.617456089472398e-05,
 'saint_bernard': 0.0001000974079943262,
 'samoyed': 0.0001371700782328844,
 'scottish_terrier': 0.00027684049564413726,
 'shiba_inu': 5.5386270105373114e-05,
 'staffordshire_bull_terrier': 5.701235932065174e-05,
 'wheaten_terrier': 4.680879646912217e-05,
 'yorkshire_terrier': 0.0002264348149765283}

4 Run local Gradio App

Theres a variety of ways to alter the app, I’ve set the size of the images and provided some examples:

gr_image = gr.Image(width=244, height=244)
gr_label = gr.Label()

input_examples = ['pet1.jpg','pet2.jpg','pet3.jpg','pet4.jpg','pet5.jpg']
intf = gr.Interface(fn=classify_image_fn,
                    inputs=gr_image,
                    outputs=gr_label,
                    examples=input_examples)
intf.launch(inline=False)

Running on local URL:  http://127.0.0.1:7863

To create a public link, set `share=True` in `launch()`.

c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\fastai\torch_core.py:263: UserWarning: 'has_mps' is deprecated, please use 'torch.backends.mps.is_built()'
  return getattr(torch, 'has_mps', False)

c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\fastai\torch_core.py:263: UserWarning: 'has_mps' is deprecated, please use 'torch.backends.mps.is_built()'
  return getattr(torch, 'has_mps', False)

c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\fastai\torch_core.py:263: UserWarning: 'has_mps' is deprecated, please use 'torch.backends.mps.is_built()'
  return getattr(torch, 'has_mps', False)

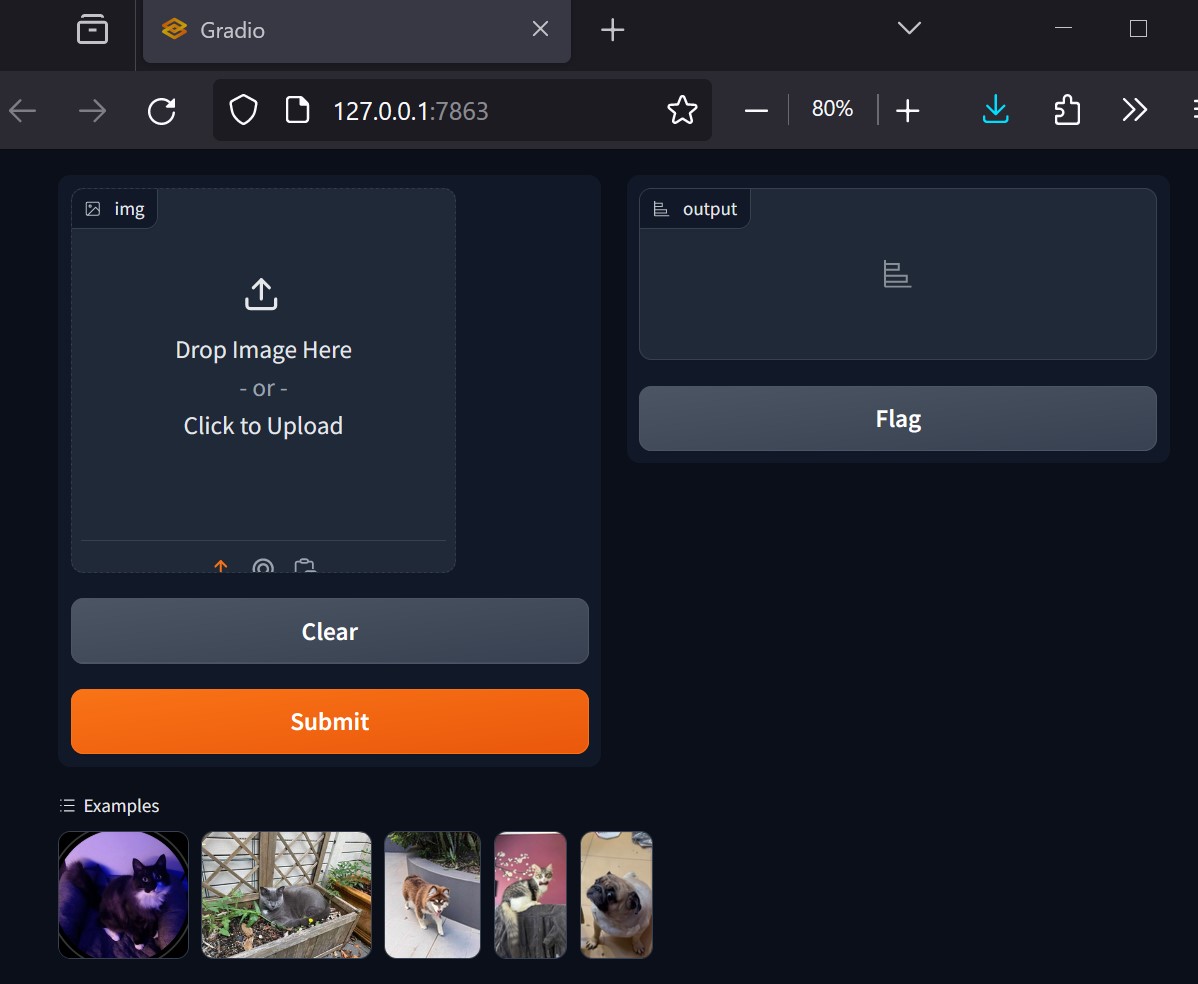

4.1 Open Local Gradio App

Open the URL provided in your favourite browser

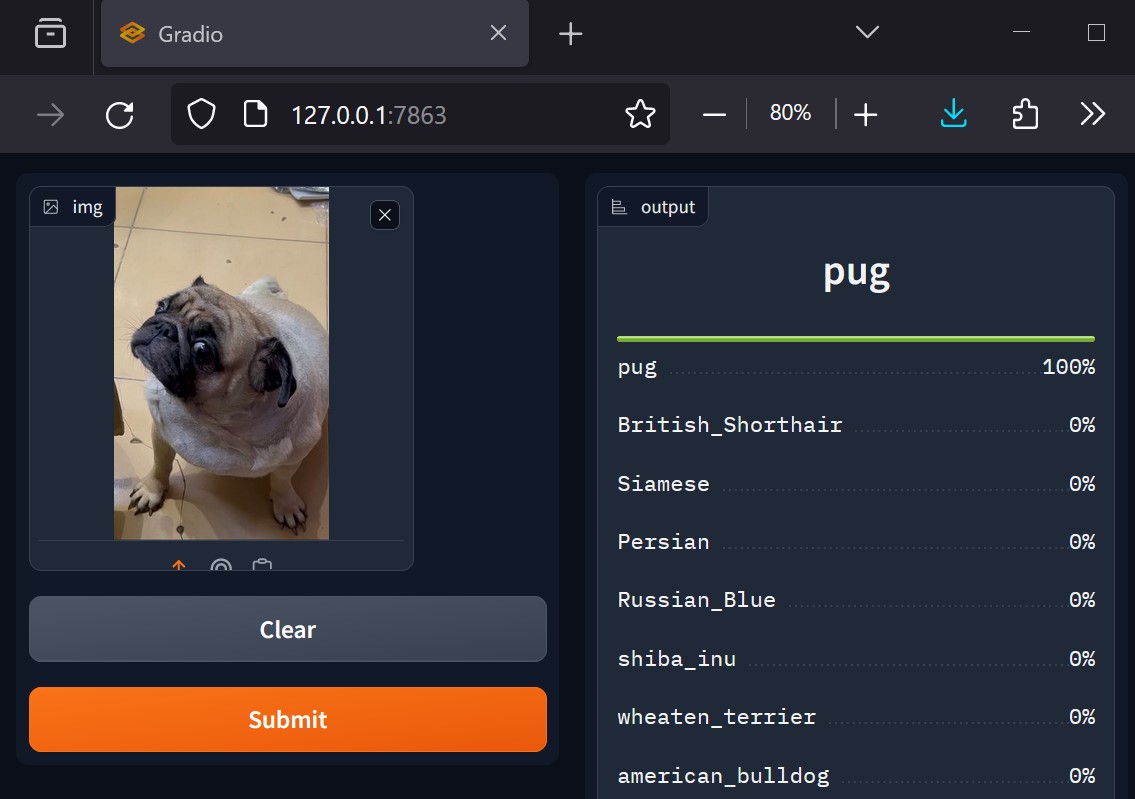

4.2 Test it out

The app knows a pug when it sees one! The app is ready.

5. Export (app.py)

Gradio app must be all inside a app.py script when being deployed on HuggingFaces.

Thankfully, there is a library to export all the cell-blocks from our notebook (.ipynb) to python script (app.py).
Reference

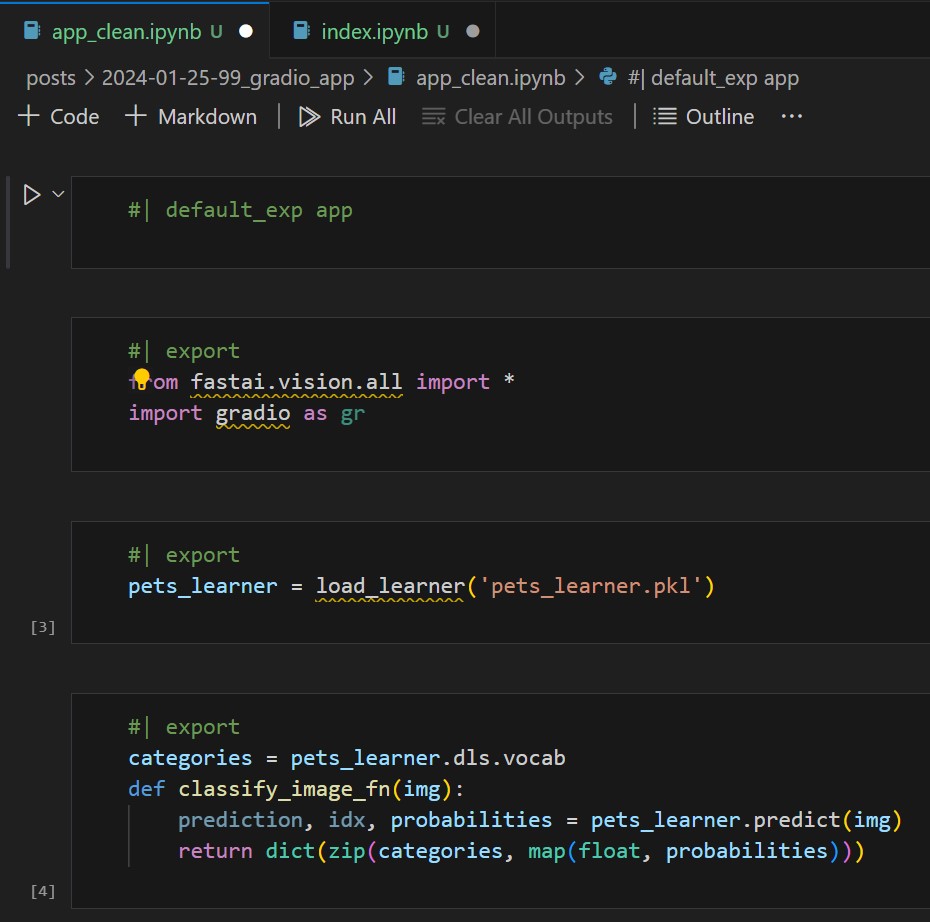

5.1 Put directives at front of notebook

• Place ‘#| default_exp app’ in a python codeblock in front of the the notebook

5.2 Choose the cellblocks to export

• Place ‘#| export’ in front of each codeblock you need to export

5.3 Run nbdev and export

from nbdev.export import nb_export
nb_export('app.ipynb')

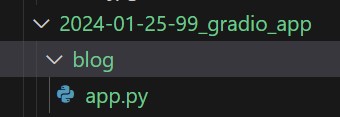

This will create a new folder as home directory and place in the app.py

To be Continued…
