Today I’ll be attempting to build my first deep learning image classifier to distinguish between rice and noodles using knowledge gained from Jeremy Howards Fast AI course

High-level steps:
1. Search and Prepare Data
2. Create DataLoader
3. Create Learner
4. Prediction

I will detail any problems, issues, questions and resolutions during the process.

!pip install -Uqq fastai

from fastbook import *

c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\torchvision\io\image.py:13: UserWarning: Failed to load image Python extension: '[WinError 127] The specified procedure could not be found'If you don't plan on using image functionality from `torchvision.io`, you can ignore this warning. Otherwise, there might be something wrong with your environment. Did you have `libjpeg` or `libpng` installed before building `torchvision` from source?
  warn(

1. Search and Prepare Data

# 1.1 Get 'rice' photos
download_url(search_images_ddg('rice',max_images=1)[0],'rice.jpg',show_progress=False)
Image.open('rice.jpg').to_thumb(256,256)

# 1.2 Get 'noodles' photos
download_url(search_images_ddg('noodles', max_images=1)[0],'noodles.jpg',show_progress=False)
Image.open('noodles.jpg').to_thumb(256,256)

Lets use 60 imagess of ‘rice’ and ‘noodles’ from DuckDuckGo.

Note: I downloaded for 100 images of each and then taking 60 of them as some images fail so I’m leaving room for failed photos.

Question: Why do we need verify and why do some photos fail?

# 1.3 Prep images in folders
searches = ['rice', 'noodles']
path = Path('rice_or_noodles')

if not path.exists(): # Ensure the path exists
    for o in searches:
        dest = (path/o)
        dest.mkdir(parents=True, exist_ok=True)
        print(f'Searching for {o} images...')
        results = search_images_ddg(f'{o} photo',max_images=100)
        print(f'{len(results)} images found for {o}. Downloading...')
        download_images(dest, urls=results[:60])
        print(f'Resizing images in {dest}')
        resize_images(dest, max_size=400, dest=dest)

# 1.4 Remove Failed images
path = Path('rice_or_noodles')
failed = verify_images(get_image_files(path))
failed.map(Path.unlink)

(#0) []

2. Create DataLoader

# 2.1
dls = DataBlock(
    blocks = (ImageBlock, CategoryBlock), # i.e.input image / ouput is category (coin or notes)
    get_items = get_image_files, # returns list of images files
    splitter = RandomSplitter(valid_pct=0.2, seed=42), # critical to test accuracy with validation set
    get_y=parent_label, # use parents folder of a path
    item_tfms=[Resize(192, method="squish")] # most computer vision architecutres need all your inputs to be same size
).dataloaders(path)

c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\fastai\torch_core.py:263: UserWarning: 'has_mps' is deprecated, please use 'torch.backends.mps.is_built()'
  return getattr(torch, 'has_mps', False)

# 2.2 We can see Paths were created for every image and split into our training and data sets
dls.train_ds.items[:2]
dls.valid_ds.items[:2]

[Path('rice_or_noodles/rice/4280fe58-691a-4c0b-85a5-5c1c8400ecb7.jpg'),
 Path('rice_or_noodles/rice/f8a77d77-c007-4854-af8b-2af624a8da66.jpg')]

[Question]: How does it know whether it is training set or valid set? I guess theres some indexing somewhere that I dont know how to obtain.

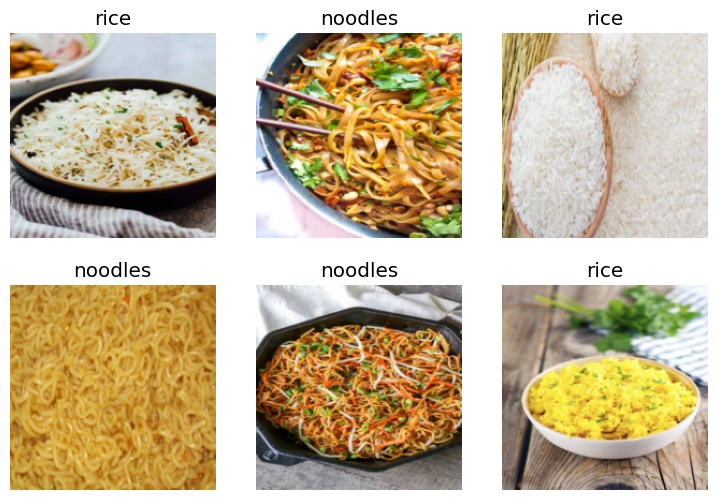

# 2.1 Show a training batch which has an 'image' and a 'label'
dls.show_batch(max_n=6) #batch shows input and label

2. Create Learner using ResNet

In the course, we used a pre-trained model ‘ResNet18’ (RN).

Why Pre-trained Models?:
- Pre-trained models is like getting an athlete who is very good basic sport related skills like hand-eye coordination, jumping, running/sprinting, changing directions etc and then - telling them to learn a specific sport (fine-tuning), - say tennis (labelled dataset provided). With a good base of skills, this person should be able to learn tennis to a good level…

ResNet18:
- ResNet18 is trained on 1.28 million images with 1000 object categories. - 18 layers
- Trained on ImageNet dataset

[Future iterations 1]: Perhaps there are alternative pre-trained models specialising in food?

[Future iterations 2]: - Read up and try understand the various architectures Fast AI’s TIMM model architectures - Try different architectures and different versions

learner_RN18 = vision_learner(dls, resnet18, metrics=error_rate)

2.1 Learner Model Times:

They all took under 10 seconds to create the general learner. Now to fine-tune them!

learner_RN18.fine_tune(8)

epoch	train_loss	valid_loss	error_rate	time
0	1.840357	4.676042	0.476190	00:03

epoch	train_loss	valid_loss	error_rate	time
0	1.763106	3.761843	0.476190	00:04
1	1.517361	2.798523	0.476190	00:04
2	1.202234	2.308116	0.428571	00:04
3	0.953227	1.637496	0.428571	00:04
4	0.770979	1.034023	0.380952	00:04
5	0.662257	0.641428	0.190476	00:04
6	0.563239	0.405057	0.142857	00:04
7	0.490904	0.285846	0.095238	00:04

Our learner is performing at 90% accuracy (9% error rate) by looking at only 60 photos!

Lets try predict some random photos of rice and noodles I’ve found on the internet.

from IPython.display import Image # import image viewer

# noodle predictor
uploader = SimpleNamespace(data = ['test_noodle.jpg'])
image_path = uploader.data[0]
display(Image(filename=image_path))
res1, res2, res3 = learner_RN18.predict(image_path)
print(f"{res1}: {res3[res2]*100:.2f}%")

c:\Users\tonyp\miniconda3\envs\fastai\Lib\site-packages\fastai\torch_core.py:263: UserWarning: 'has_mps' is deprecated, please use 'torch.backends.mps.is_built()'
  return getattr(torch, 'has_mps', False)

noodles: 99.98%

Prediction 1: Noodles

The model predicted noodles correctly with 99.98% confidence!

# rice predictor 1
uploader = SimpleNamespace(data = ['test_rice.jpg'])
image_path = uploader.data[0]
display(Image(filename=image_path))

res1, res2, res3 = learner_RN18.predict(image_path)
print(f"{res1}: {res3[res2]*100:.2f}%")

noodles: 66.22%

Prediction and Results 2: Rice 1

The model predicted rice incorrectly with 66.22% confidence!

I was a bit confused so I decided to provide another image of rice to make

# rice predictor 2
uploader = SimpleNamespace(data = ['test_rice2.jpg'])
image_path = uploader.data[0]
display(Image(filename=image_path)) # show image

# get
res1, res2, res3 = learner_RN18.predict(image_path)
print(f"{res1}: {res3[res2]*100:.2f}%")

noodles: 98.51%

Prediction and Results 3: Rice 2

The model predicted rice incorrectly with 98.51% confidence!

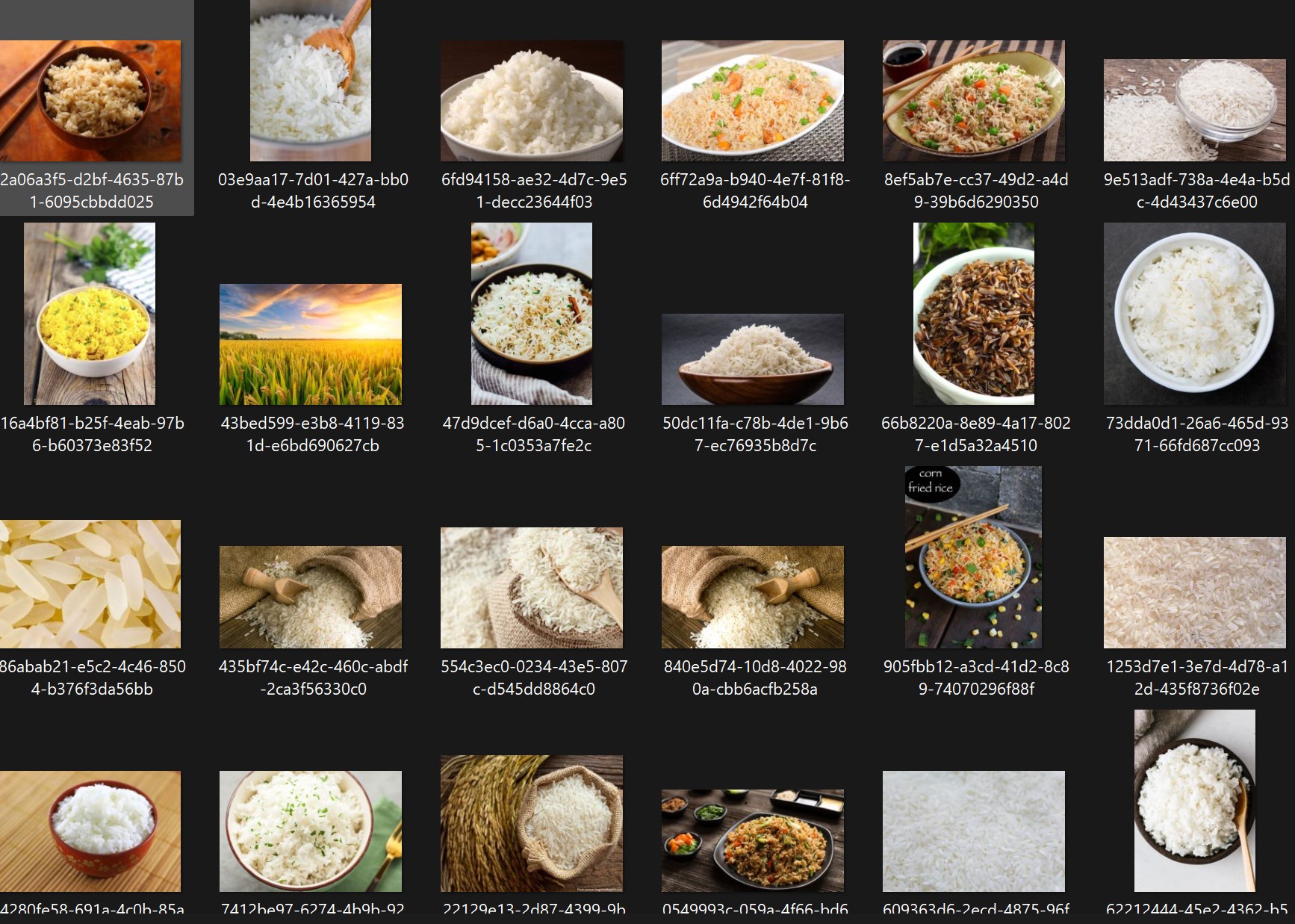

Okay now there is clearly something wrong going on. I decide to take a gander at the photos in my ‘rice’ folder.

It looks like we’ve trained a learner specialises in bowled or white rice. I was testing the model with fried rice since that is my favourite rice dish.

Lets test out a couple photos on bowled rice.

# rice predictor 2
uploader1 = SimpleNamespace(data = ['test_boiledrice1.jpg'])
uploader2 = SimpleNamespace(data = ['test_boiledrice2.jpg'])
image_path1 = uploader1.data[0]
image_path2 = uploader2.data[0]

display(Image(filename=image_path1)) # show image
display(Image(filename=image_path2)) # show image

res1, res2, res3 = learner_RN18.predict(image_path1)
print(f"{res1}: {res3[res2]*100:.2f}%")
res1, res2, res3 = learner_RN18.predict(image_path2)
print(f"{res1}: {res3[res2]*100:.2f}%")

rice: 88.73%

noodles: 92.57%

Now I’m confused as its predicting incorrectly with 92.57% confidence.

Perhaps the model isnt seeing enough data?

Lets train a new model with:
- 300 images instead of 60
- ‘rice food’ and ‘noodle food’ as keyword insteads of just ‘rice’ and ‘noodles’

searches = ['rice food', 'noodles food']
path_200 = Path('rice_or_noodles_300')

if not path_200.exists(): # Ensure the path exists
    for o in searches:
        dest = (path_200/o)
        dest.mkdir(parents=True, exist_ok=True)
        print(f'Searching for {o} images...')
        results = search_images_ddg(f'{o} photo',max_images=300)
        print(f'{len(results)} images found for {o}. Downloading...')
        download_images(dest, urls=results[:200])
        print(f'Resizing images in {dest}')
        resize_images(dest, max_size=400, dest=dest)


# 1.4 Remove Failed images
path_200 = Path('rice_or_noodles_300')
failed = verify_images(get_image_files(path_200))
failed.map(Path.unlink)

(#10) [None,None,None,None,None,None,None,None,None,None]


dls_200 = DataBlock(
    blocks = (ImageBlock, CategoryBlock), # i.e.input image / ouput is category (coin or notes)
    get_items = get_image_files, # returns list of images files
    splitter = RandomSplitter(valid_pct=0.2, seed=42), # critical to test accuracy with validation set
    get_y=parent_label, # use parents folder of a path
    item_tfms=[Resize(192, method="squish")] # most computer vision architecutres need all your inputs to be same size
).dataloaders(path_200)

learner_RN18_200 = vision_learner(dls_200, resnet18, metrics=error_rate)

learner_RN18_200.fine_tune(4)

epoch	train_loss	valid_loss	error_rate	time
0	1.155098	0.872050	0.338462	00:11

epoch	train_loss	valid_loss	error_rate	time
0	0.625260	0.402908	0.169231	00:15
1	0.442973	0.289800	0.138462	00:14
2	0.317375	0.328805	0.153846	00:14
3	0.235606	0.327507	0.123077	00:15

# Prediction with new learner (300 images and specific keywords)
# rice predictor 2
uploader1 = SimpleNamespace(data = ['test_boiledrice1.jpg'])
uploader2 = SimpleNamespace(data = ['test_boiledrice2.jpg'])
image_path1 = uploader1.data[0]
image_path2 = uploader2.data[0]

display(Image(filename=image_path1)) # show image
display(Image(filename=image_path2)) # show image

res1, res2, res3 = learner_RN18_200.predict(image_path1)
print(f"{res1}: {res3[res2]*100:.2f}%")
res1, res2, res3 = learner_RN18_200.predict(image_path2)
print(f"{res1}: {res3[res2]*100:.2f}%")

rice food: 100.00%

rice food: 99.95%

So it’s now 100 and 99.95% confident they’re rice, which is great!

Lets try some fried rice!

We’ll retest now at the fried rice photo which the initial model guessed to be noodles with 98.5% confidence

# Prediction with new learner (300 images and specific keywords)
# rice predictor 2
uploader1 = SimpleNamespace(data = ['test_rice2.jpg'])
image_path1 = uploader1.data[0]

display(Image(filename=image_path1))

res1, res2, res3 = learner_RN18_200.predict(image_path1)
print(f"{res1}: {res3[res2]*100:.2f}%")

rice food: 99.56%

Great! It is correct with 99.56% confidence.

I think we’ve created a great rice and noodles classifier, lets stop here.

[Future Iteration 3]: Build web app for everyone to test it out
[Future Iteration 4]: Make it useable on my blog

[Question] I wonder if theres a way to quickly see all specific headings I’ve used, I find myself scrolling up and download to find what Iteration I’m up to…

Apologies for the lack of neatness, lets hope this improves over time…
